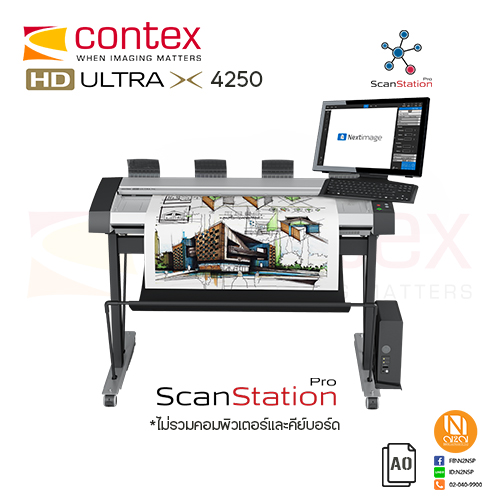

Contex HD Ultra X 4250 ScanStation Pro

คุณสมบัติทางฮาร์ดแวร์ของเครื่อง
Contex HD Ultra X 4250 ScanStation Pro

IQ Quattro X
4450

IQ Quattro X
4490

HD Ultra X
4250

HD Ultra X
4290

HD Ultra X
6050

HD Ultra X
6090

ScanStation Pro

Maximum Scan Width

44 inch (1118 mm)

42 inch (1067 mm)

60 inch (1524 mm)

Maximum Media Width

47 inch (1194 mm)

43.3 inch (1100 mm)

61.8 inch (1570 mm)

SCANNING SPEED (INCH/SEC):

200 dpi RGB Color

8.9

17.8

8.9

17.8

8.9

17.8

Upgradable

Yes, to 17.8

–

Yes, to 17.8

–

Yes, to 17.8

–

200 dpi Grayscale/Monochrome

17.8

17.8

17.8

17.8

17.8

17.8

PRODUCTIVITY (DOCUMENTS/HOUR): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans

Arch E-size, RGB Color, 200dpi

519

875/519

519

875/519

519

875/519

HARDWARE SPECIFICATIONS:

Optical Resolution

1200 dpi

1200 dpi

1200 dpi

Maximum Resolution

9600 dpi

9600 dpi

9600 dpi

Imaging Technology

Contex CleanScan CIS

5 x 4 linear color CCDs
(R,G,B and Gray)

7 x 4 linear color CCDs
(R,G,B and Gray)

Maximum Media Thickness

0.08 inch (2 mm)
flexible documents only

0.6 inch
(15 mm)

0.6 inch
(15 mm)

Accuracy

0.1% +/- 1 pixel

Bit Depth1 (color/mono)

48-bit / 16-bit

Color Space

Adobe RGB / Device RGB / RAW RGB / sRGB

USB

USB3 with xDTR3

Gigabit Ethernet

xDTR 2.5

Energy Star Certified

Yes

REimage by Contex

Virtually rescan documents directly in Nextimage REPRO

ADJUSTABLE STAND AND TOUCHSCREEN:

ScanStation 21.5” Touch Screen

21.5” multi-touch, full HD TFT LCD widescreen,1920×1080 dpi

Screen Mounting

Optional, left or right-side mounting

Low Stand Height Adjustment

32.8 / 33.8 / 34.8 inch
(834 / 859 / 884 mm)

36.3 / 37.3 / 38.3 inch
(922 / 947 / 972 mm)

High Stand Printer Height

995 to 1195 mm in 25 mm increments
(39.2 to 47inches in 1-inch increments)

FULL FEATURED NEXTIMAGE5 REPRO SOFTWARE INCLUDED:

Language versions

Chinese, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Russian, Spanish

Operating system

Windows 10 and Windows 8.1, 32-bit and 64-bit

NextImage TWAIN

64-bit TWAIN application driver included for use with EDM and other imaging software

File formats

Multipage PDF & TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4, and others

Auto Naming Templates

Configurable Counters, Date, Time and other. Use in folder and filenames or both

Software Compatibility2

AutoCAD® , Microstationtm, ArcGIStm and all other CAD, GIS and other image editing / storage applications

Power
(Ready / Sleep / Scan)

100-240V, 60/50Hz,
10W / 0.5W / 18W

100-240V, 60/50Hz,
39W / <1W / 130W (built-in power supply)

Scanner Weight & Dimensions

24.5 kg (54 lbs) / LxWxH: 1349mm (53.1”) x 489mm (19.3”) x 161mm (6.3”)

49.3 kg (109 lbs) / LxWxH: 1360mm (53.6’’) x 540mm (21’’) x 279mm (11’’)

62.5 kg (173.8 lbs) / LxWxH: 1810mm (71’’) x 540mm (21’’) x 279mm (11’’)

Certifications/compliance

RoHS, UL, CE, GOST-R, CCC, VCCI, KETI, BSMI, ENERGY STAR compliant

TAA compliant scanner

TAA compliant scanners are for US customers only and are assembled in Denmark
