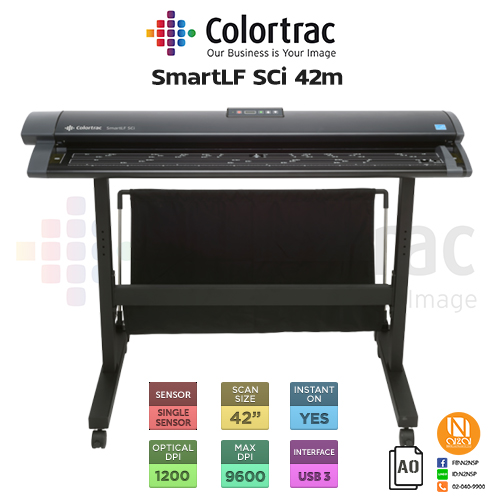

Colortrac SmartLF SCi 42m

Colortrac SmartLF SCi 42m

Color

No

Upgradeable

m ➔ c m ➔ e

Optical Resolution

1200dpi

Extended resolution

Linear interpolation from 100 to 9600dpi in 1 dpi steps

Max Scan Width

42in (106.7cm)

Max Media Width

44in (111.6cm)

Max Media Thickness

0.08in (2mm)

Min Document Size

6.0in (152mm) x 6.0in (152mm)

Max Scan Length

Depends on file format and software application. See scanner software information

Accuracy

+/-0.1% +/-1 pixel

Auto Size Display

Detects and displays the width of the document as it is loaded (mm or inches)

Imaging Technology

Single Sensor

Capture bit depth

16

Software bit depth

8 / 1

Color Space

N/A

Scan Speed 1-bit mono (in/sec)
8-bit grayscale
@200dpi

13.00

Scan Speed 24-bit color (in/sec) @200dpi

N/A

Paper Path

Face-up, front entry, rear exit or rewind to front
Face-up, front entry with optional Document Return Guide

Interface

SuperSpeed USB 3.0 data transfer rates up to 85MB/sec.
Optimised USB2 transfer rates up to 35MB/sec (using 2m USB cable supplied)

Power Requirements

External power supply 100~240VAC auto-sensing +/-10%, 50-60Hz
Scanner power consumption: 53W scanning / 1.35W sleep/ 0.16W standby (scanner off, ext. power supply on)

Operating conditions

10oC – 35oC, 35% – 80% relative humidity non-condensing

Weight & Dimensions (WxHxD)

Scanner: 58.4 lbs (26.5 kg) / 51.2 x 6.0 x 15 inches (130 x 15.2 x 38.1 cm)
Packed: 68.3 lbs (31 kg) / 56.8 x 9.3 x 20 inches (144 x 24 x 52 cm)

Host Platform

Windows 10 and Windows 8.2, 32-bit and 64-bit architectures

Certifications

CE, cUL/UL, CCC, EAC, BIS, FCC Class A, ICES, EMC, VCCI, KC, EuP, WEEE, RoHS, REACH and ENERGY STAR® certified

Included software

SmartWorks Touch
Simple-to-use software for scanning, copying and printing. Intuitive interface designed for touch screens or mouse and keyboard operation. Select the mode, choose the document type closest to the original and press go. All document types can be individually modified.   Save to PDF, PDF/A, MPDF, JPEG, JPEG2000, PNG, AutoCAD DWF, TIFF, TIFF LZW, TIF-G4, MTIFF, PCX, BMP. Batch scanning, full preview and all Windows driven printers supported.
