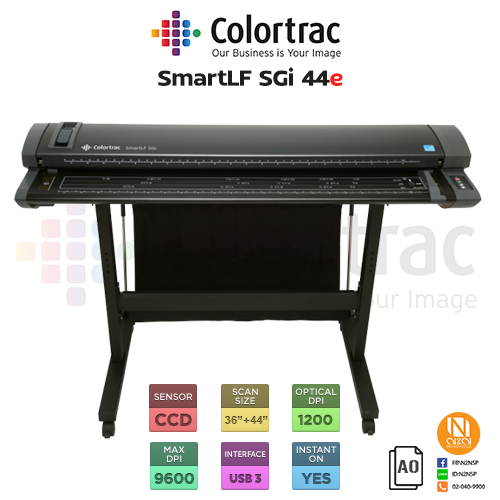

Colortrac SmartLF SGi 44e

Colortrac SmartLF SGi 44e

Upgradeable

N/A

Optical Resolution

1200dpi

Software Scan Resolution

Up to 1200 dpi (optical) and 96001dpi (interpolated) with SmartWorks Pro Scan
and SmartWorks Pro Scan & Copy software

Max Scan Width

44in (111.8 cm)

Max Media Width

46in (116.8cm)

Max Media Thickness

0.6in (15mm)

Max Scan Length

Depends on file format and software application. See scanner software information

Accuracy

+/-0.1% +/-1 pixel

Imaging Technology

6 x CCD

Data capture color/grayscale

48-bit / 16-bit

Software output color/grayscale

24-bit / 8-bit

Color Space

Raw RGB from scanner. sRGB using SmartWorks TOUCH
sRGB, Adobe RGB and Device RGB (Profiled RGB) from SmartWorks Imaging and SmartWorks Pro

Scan Speed 1-bit mono (in/sec) @200dpi

13.00

Scan Speed 8-bit grayscale (in/sec) @200dpi

13.00

Scan Speed 24-bit color (in/sec) @200dpi

8.0

Productivity  (documents/hour)

365 ²

Paper Path

Face-down, front entry, rear exit

Interface

USB 3.0 interface for data transfer rates up to 85MB/sec. Optimised USB2 interface for transfer rates up to 35MB/sec.
Network ready Gigabit Ethernet interface.

Power Requirements

External power supply 100~250 VAC autosensing +/-10%, 50-60 Hz
Scanner power consumption 72Wh (scanning) 2.5Wh (standby)

Operating conditions

10oC – 35oC, 35% – 80% RH non-condensing

Weight & Dimensions (LxWxH)

Scanner: 112 lbs (51 kg) / 56 x 18 x 8 inches (143 x 45 x 21 cm)
Packed: 123 lbs (56 kg) / 62 x 22 x 12 inches (157 x 57 x 31 cm)

Operating System and Interface(s)

Windows 10 and Windows 8.1, 32-bit and 64-bit architectures.  USB2, SuperSpeed USB3 and GBit Ethernet

Certifications

ENERGY STAR Qualified, UL/cUL, FCC, CB, CE, C-TICK, VCCI, PCT/EAC, CCC, RoHS

Included Software

SmartWorks TOUCH (USB connection only), TWAIN, Evaluation copy of SmartWorks Pro SCAN & COPY (watermarks scans and copies).
