Colortrac SmartLF Scan! 24

SmartLF Scan! 24

In the boxScan

large format scanner

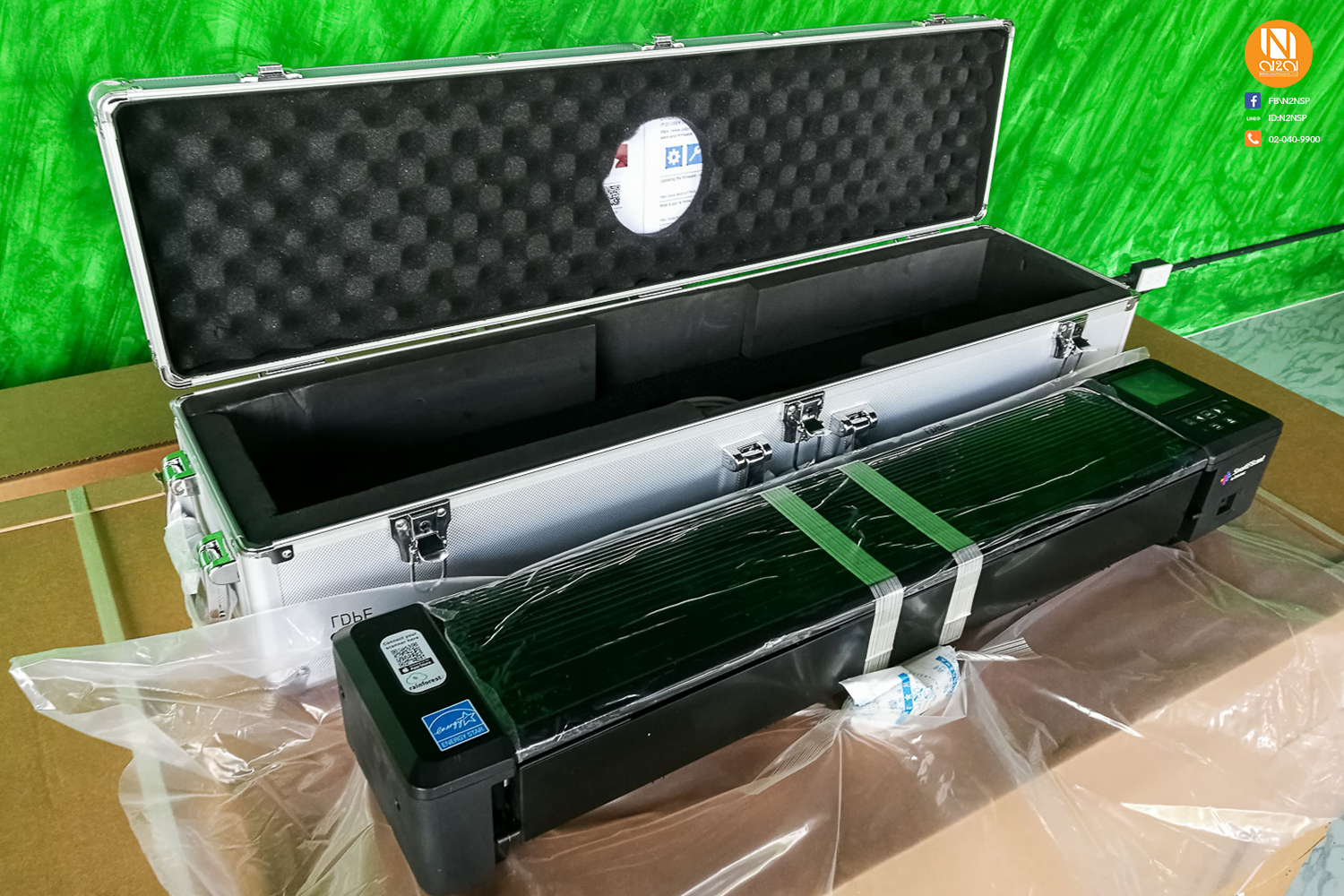

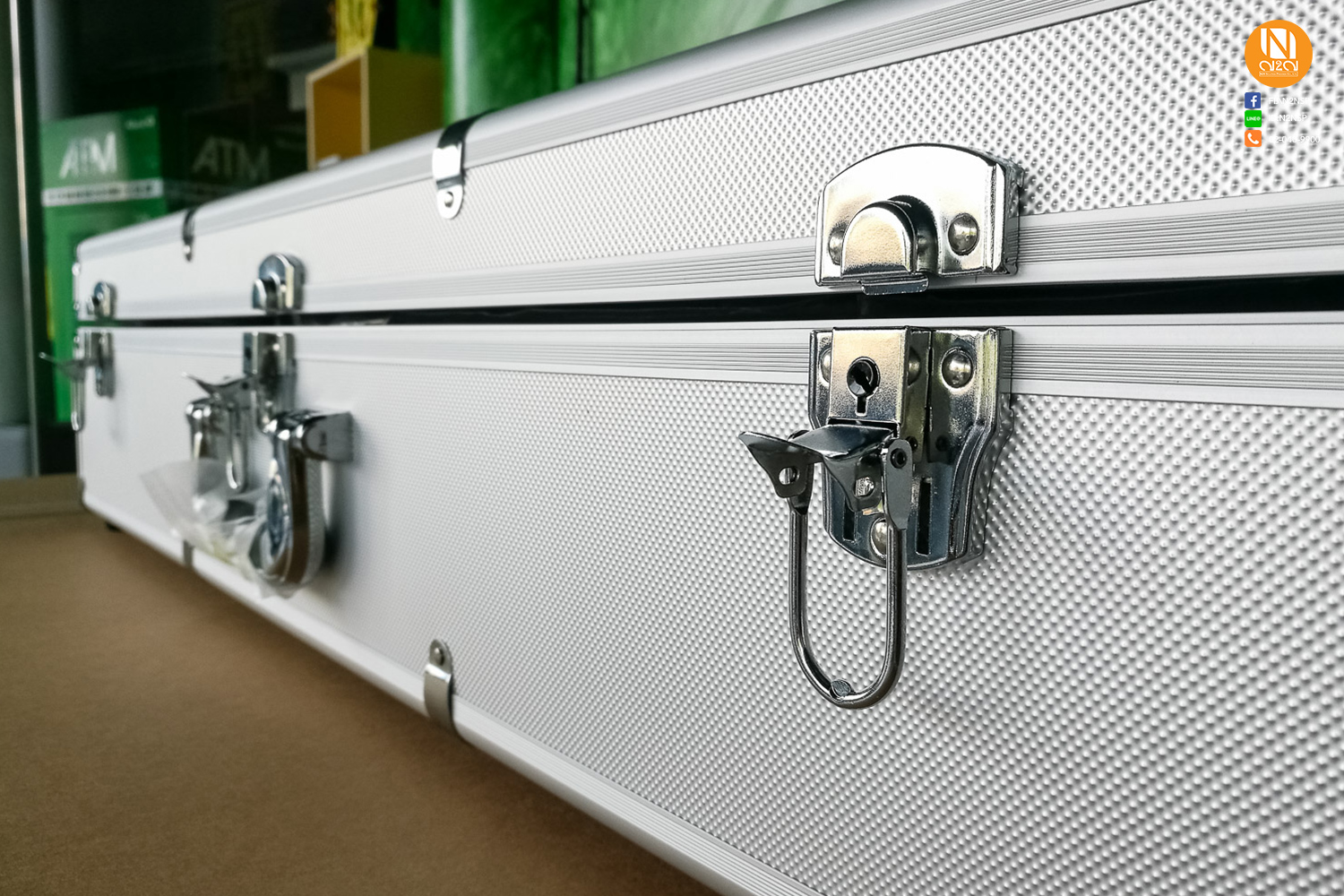

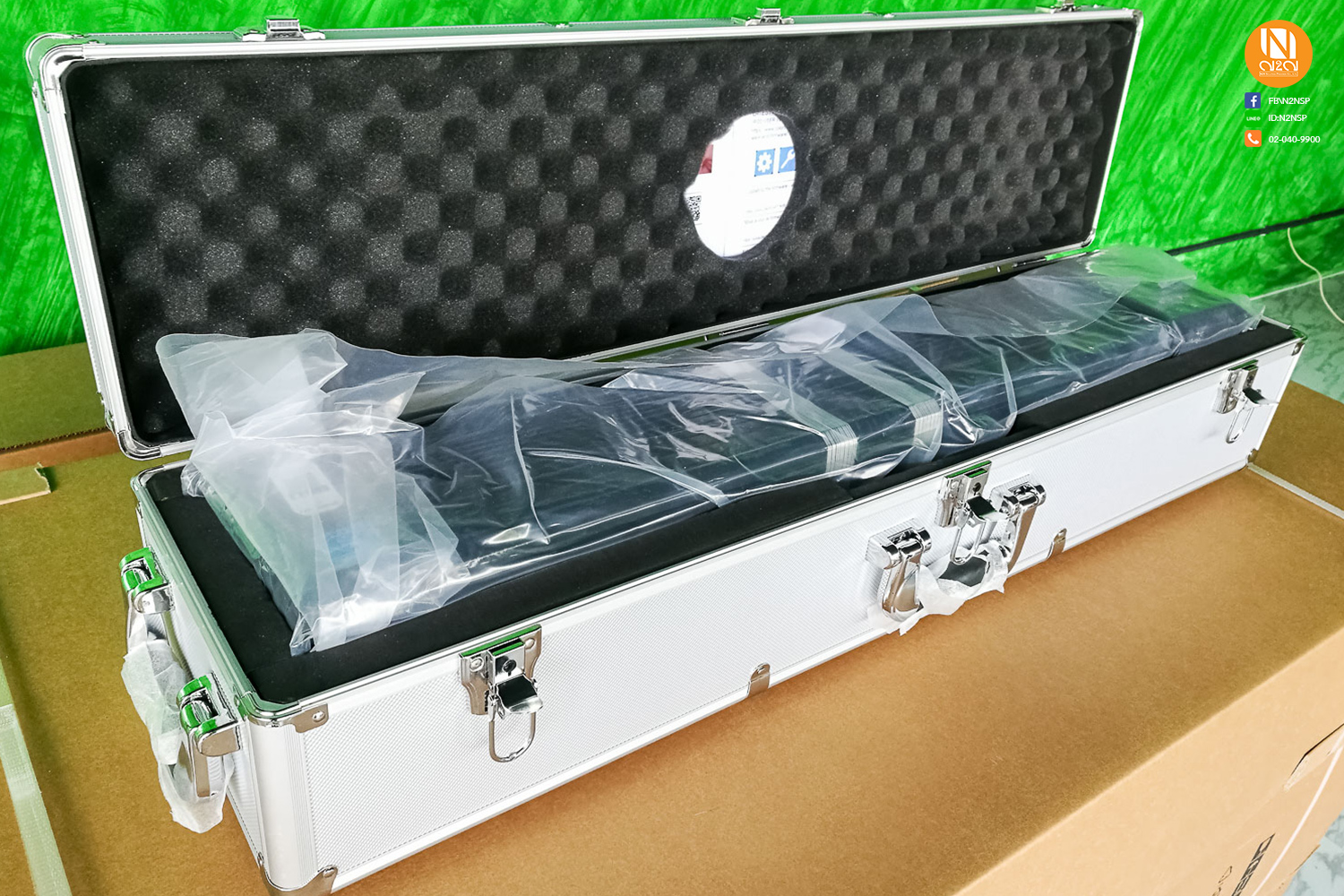

Tough wheeled carry case
Mains external power supply
User instructions
Calibration target
RJ45 Ethernet cable

Scan System

Four modes of operation.
TIFF, JPEG and PDF files are generated inside the scanner. They can be:
– stored in the scanner for transfer later
– stored directly on a USB stick (4-128 GB, FAT-32)
– transferred directly to local PC
– transferred directly to networked PC.
SmartLF Scan! is self-contained and only requires a power supply to operate.Scan

Scan software

Scan formats are viewable using native Windows Apps. The small NetApp Windows program is supplied to receive live or stored scan files directly from the scanner. NetApp also auto-displays PDF file types using any installed PDF viewer (e.g. Adobe Acrobat or similar).
No software is required for scan to USB stick operation

Optical Resolution

DocLogic (automatic) or manual 200, 400, 600 dp

DocLogic

Intelligent image optimisation system automatically sets dpi of document or photos according to physical size
to maximise image quality and reduce file size. Two settings – high and low detail

Max Scan Width

24” / 609 mm

Max Scan Length
(all file formats)

Up to 200” (5m) @200dpi  or  150” (3.8m) @400dpi  or  109” (2.7m) @600dpi – DocLogic reserves 300dpi. Up to 200″ (5m)

Min Media Width / Thickness

6.2” (160 mm) / 0.003” (0.07 mm)

Max Media Width / Thickness

26” (660 mm) / 0.02” (0.5 mm)

Paper sizing (image sizes)

ISO DIN / ARCH / ANSI / automatic width and length

Internal memory

Approx. 6 GB or 8 scans

Scan Accuracy

0.2 % +/-1 pixel

SingleSensor digital imaging technology

SingleSensor is a full width straight-line contact image sensor (US patent #8,922,849) bi-directional long-life LED light system for optimum object illumination and instant-on scanning capability

Operation modes

Scan to internal memory / scan to USB stick (not supplied) / scan to networked computer

Color space

24-bit sRGB and grayscale (plus bitonal using the pc connection)

Scan speeds (maximum at 200 dpi)

4.5 inch/sec (114.3mm/sec) grayscale and 3 in/sec (76.2mm/sec) for color.

Paper Path

Centered, face-up, front entry

Data interfaces

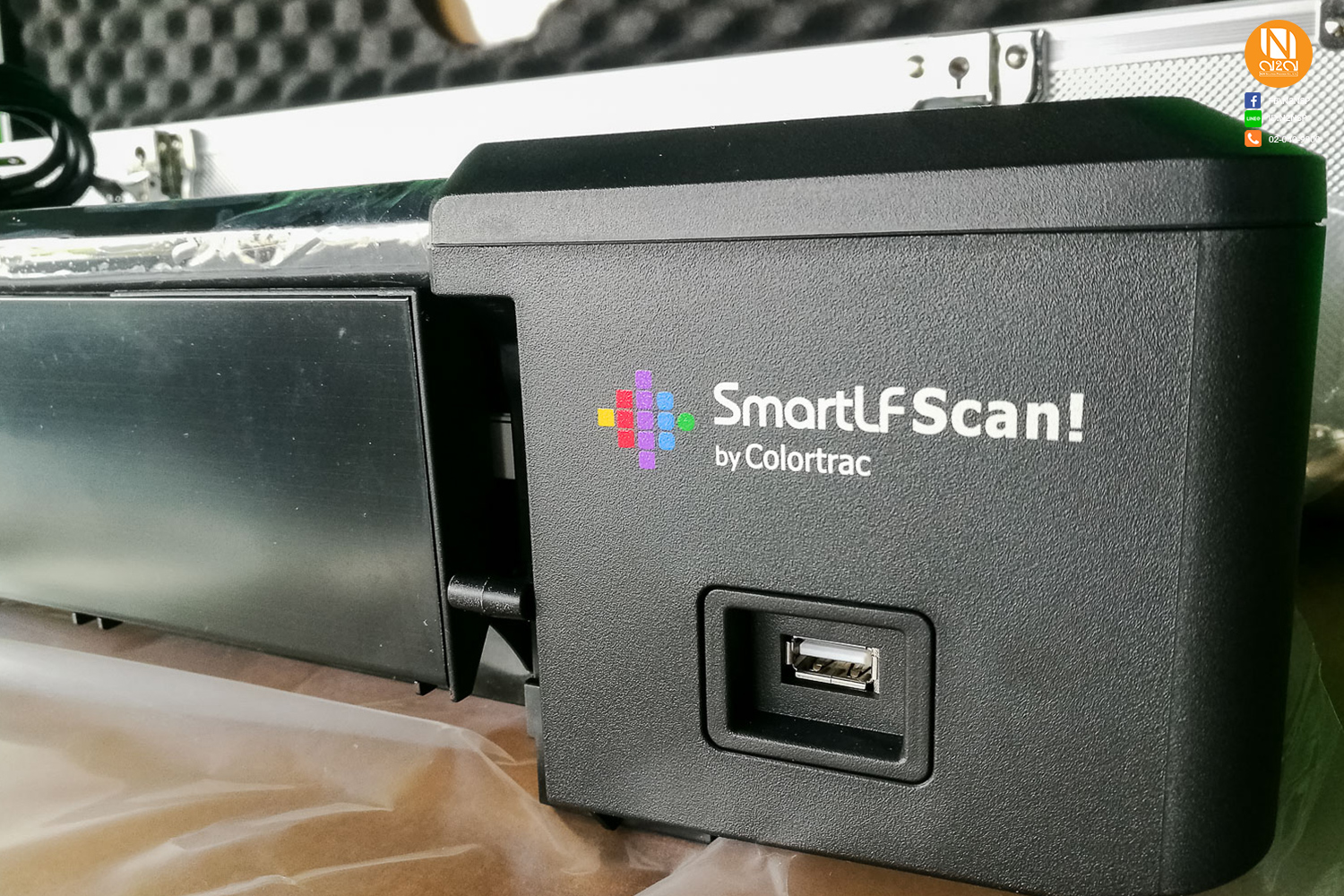

Front: USB2 socket for scan to USB memory stick. Rear: Ethernet RJ45 GBit for scan to computer over network

Power Requirements

External power supply Input: 100~240VAC, 50-60Hz, auto-sensing +/-10%, Output: 3.42A at 19V.
Scanner power consumption: 19.4 W (scanning), 10.2W (idle), 0.3W(sleep/ON), 0.05W (standby/soft OFF).
Product enters sleep after 15 min and standby after 60 min. Document load or pressing green button reactivates from sleep. Switch scanner off and on again to reactivate from standby. Energy Star V2 qualified

Environment

Operating temperature 10oC – 35oC, Relative Humidity 10% – 90% (non-condensing)

Weight & Dimensions (WxHxD)

Scanner only 11.5 lbs (5.2 kg) / 34.3 x 6.3 x 5 inches (870 x 160 x 126 mm)
Scanner incl. case: 22.3 lbs (10.1 kg) / 38.6 x 10.4 x 8.2 inches (980 x 265 x 208 mm)

Host Platform

Windows 10, Windows 8.1, 32-bit and 64-bit architectures

Certifications

ENERGY STAR qualified, CB, CE, CCC, FCC, UL, RoHS compliant

Warranty

12 months / 30,000 linear meters whichever comes first
